Max payload

1200 kg

2650 lb

Engine power STAGE V

13.4 kW

18 hp

Width

800 mm

31.5 in

Supply

diesel

Product data sheet

FIND OUT
THE TECHNICAL DETAILS AND
FEATURES

Information

Do you want more information? Fill in the following form and we you will be immediately contacted.

    Name*

    Surname*

    Email*

    Phone*

    City*

    Nation*

    Request

    Type of request*

    InformationsAfter-sales services

    * Fields with asterisk are required

    I confirm that I have read the information on the personal data management.I agree to the processing of my personal data according to the mentioned information.

    Standard equipment

    • Tracked undercarriage with hydrostatic transmission able to receive a large number of equipments.
    • Double effect cylinder for the front lifting of the accessories.
    •  Rubber tracks, monoblock type, with steel cords and heat treated embedded metals.

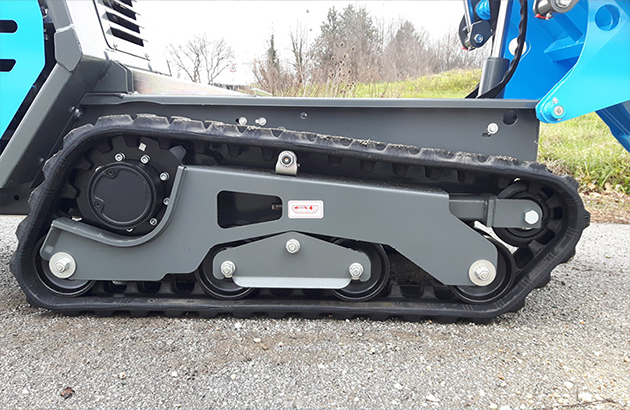

    •  Central pairs of rollers on oscillating frame to better absorb rough terrain.
    •  Patented track lay-out to grant a longer ground surface bearing, an high stability and a good driving comfort in all the loading conditions.
    •  Diesel engine, water cooled, electric start.
    •  Hydrostatic transmission with 2 axial pistons pumps and fixed displacement orbit motors. Steering throughout the rotation of the tracks.

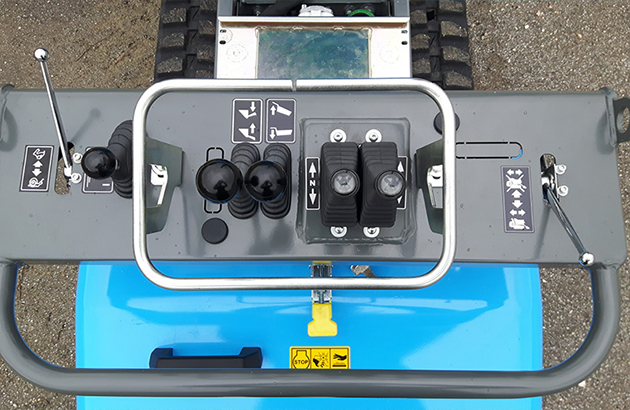

    • Travelling control by two servoassisted levers with automatic return to “neutral” in case of emergency stops.

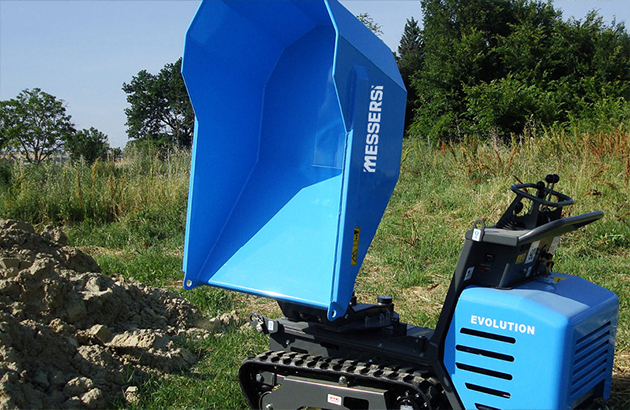

    • Loading body with large angle of discharge. The round shaped design gives to the machine a pleasant look and allows a quick dumping of the loaded materials.

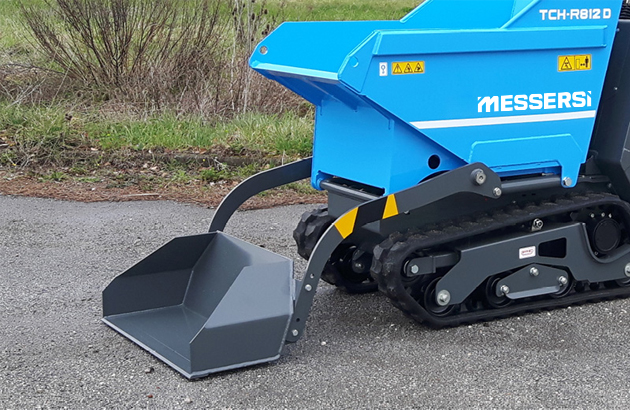

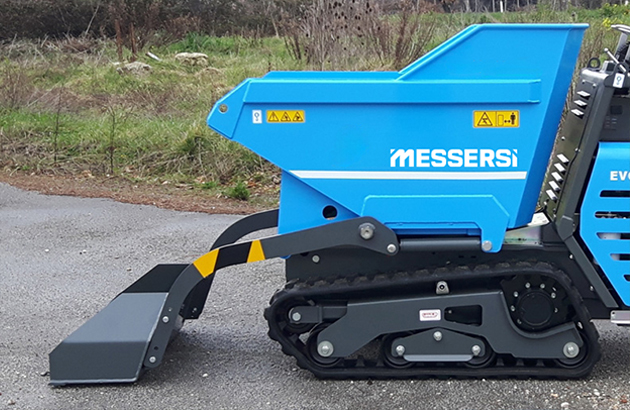

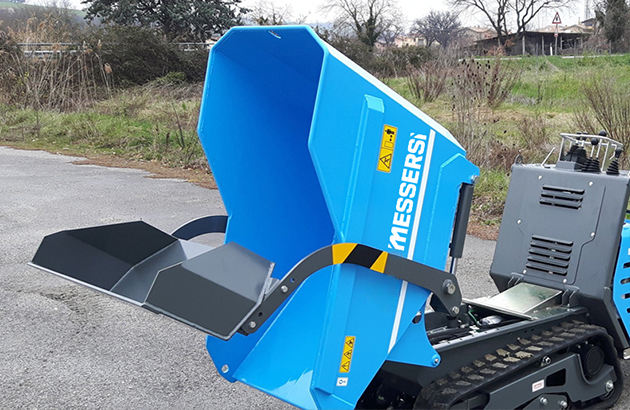

    •  The selfloading shovel of 65 lit. of capacity (option) allows an optimal loading of the body. The limited width of the machine is also due to position of the shovel lifting cylinders.
    • The hydraulic double effect P.T.O. (option) with a delivery of max. 28 lt./min. and pressure of 165 bar, can be used for auxiliary equipment.
    •  Operator’s platform and engine bonnet as standard fittings.

    Data, features and illustrations are not binding and may be altered without any notice.
