M-50K 2018-06-13T17:31:12+00:00

Weight

4900

Kg

Engine power

38

KW

Digging depth

3980

mm

Type

Standard

Product data sheet

FIND OUT
THE TECHNICAL DETAILS AND
FEATURES

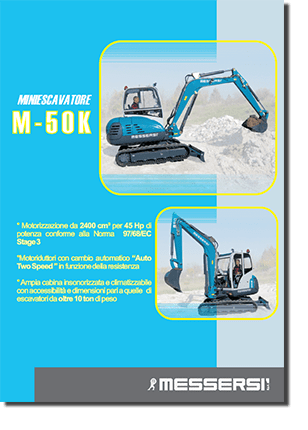

Download the brochure
Télécharger la brochure

Information

Do you want more information? Fill in the following form and we you will be immediately contacted.

Name*
Surname*
Email*
Phone*
Request

Type of request*

InformationsAfter-sales services
* Fields with asterisk are required

General Features

  • Engine complying with the 97/68 / EC Stage 3 standards for pollution emissions.
    Automatic straight travel fucntion.
  • Hydraulic flow valve for doubling the speed of the boom and the dipstick to increase the productivity of the machine (Dual Mode).
  • Two speeds by double displacement axial piston hydraulic motors with automatic speed change from fast to slow speed depending on the resistance (Auto Two Speed)
  • Exceptional maneuverability thanks to the servo-controls on all functions.
  • Excellent accessibility to the hydraulic components thanks to the new positioning of the main valve on the right side of the machine.

Standard equipment

  • Closed Cab with heating.
  • Bucket 600 mm (capacity SAE lt 180).
  • Second electrically selectable speed.
  • 1500 mm digging arm.
  • Power Take Off for hydraulic accessories (P.T.O.)
  • Dual Mode system

Options

  • Buckets from 300 to 1000 mm, standard or for Quick Hitches.
  • Ditch Buckets fixed or tilting. Trapezoidal buckets.
  • Hydraulic or mechanical quick coupler.
  • Hydraulic breaker.
  • Hydraulic auger.
  • Brush cutter.
  • Steel tracks. Long arm 1850 mm.
  • Two-piece boom. Dozer blade floating valve
  • Air Conditioner.

Data, features and illustrations are not binding and may be changed without any notice.
