M-28U 2018-06-13T17:27:59+00:00

Weight

2850/3050

Kg

Engine power

27

KW

Digging depth

2820

mm

Type

Zero tail swing

Product data sheet

FIND OUT
THE TECHNICAL DETAILS AND
FEATURES

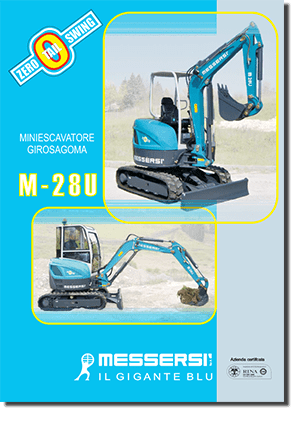

Download the brochure

Information

Do you want more information? Fill in the following form and we you will be immediately contacted.

Name*
Surname*
Email*
Phone*
Richiesta

Tipologia Richiesta*
InformationsAfter-sales services

* Fields with asterisk are required

General Features

  •  Innovative design with the tail always remaining within the width of the tracks (Zero Tail Swing).
  •  Suspension and adjustable operator’s seat increases productivity by providing optimum comfort.
  • Travel levers and servo-controls disabling system by armrest lifting prevents accidents due to unexpected machine movement during entry or exit from the driving place.
  •  Extraordinary manoeuvrability due to the use of pilot assisted controls (joy-sticks) to operate arms and buckets.
  • Straight travel contemporary with all arms/bucket manoeuvring.
  •  Rollers and idler wheels with rolling bushing replacing the slithering bushes for a remarkable increasing in the traction and life time performances.
  • The round shape design recalls the other models of the range, thus creating a continuity of style and image.

Standard equipment

  • Canopy according to TOPS-FOPS norms
  • Standard bucket of mm 450 (SAE capacity lt. 64)
  •  2-speeds travel electric switch
  •  Oil recovering system on dipstick ram
  • mm 1200 long dipstick
  •  Hydraulic Power Take-Off (P.T.O.)
  • USE & MAINTENANCE and SPARE PARTS MANUAL

Options

  • Buckets of mm 250, 350, 450, 500 standard, for rocks and for Quick Hitches
  • Buckets for slopes standard or swivelling
  •  Buckets for cleaning
  • Mechanical or hydraulic Quick Hitches
  •  Hydraulic breaker
  •  Hand breaker
  • Hydraulic drill
  • Grass-bush cutter
  • Steel tracks
  •  Additional ballast (202 Kg)
  •  mm 1500 longer arm
  •  Cab with heating system according to TOPS norms
  • Air conditioning

Data, features and illustrations are not binding and may be altered without any notice.
